GATE 2020 CE (CE1) – Question 43

Transportation Infrastructure · Airport runway length, taxiway and exit taxiway design · 2 marks · Multiple choice

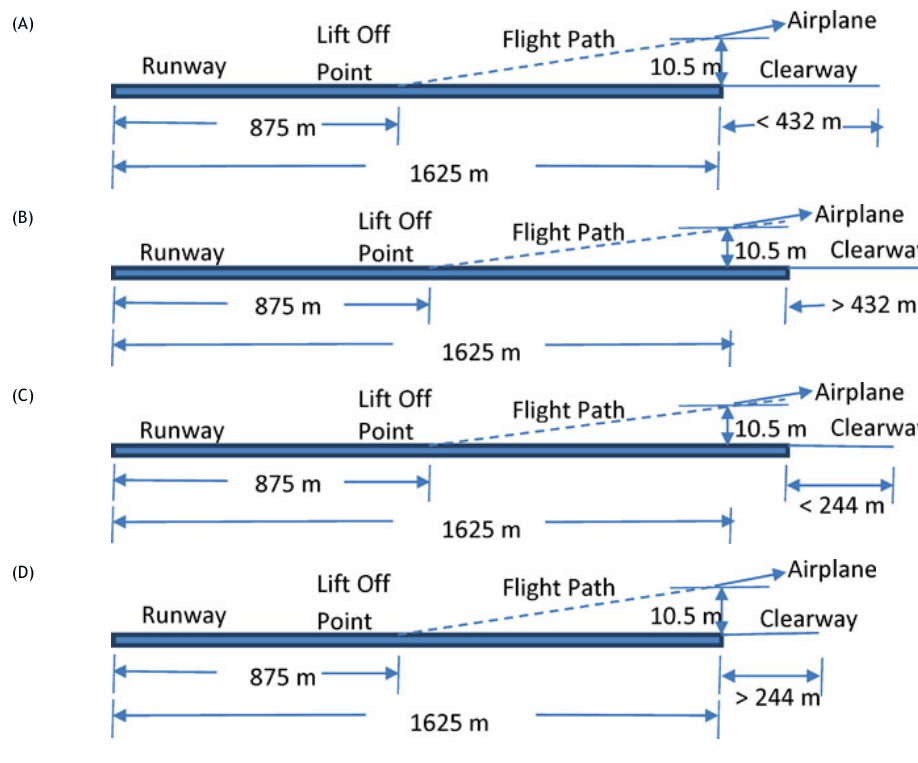

Clearway design length is calculated for normal take-off. Which diagram correctly depicts the clearway? Figures are not to scale.

Diagram for GATE 2020 CE (CE1) question 43
  1. Figure A
  2. Figure B
  3. Figure C
  4. Figure D

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) Figure C

Explanation

Normal take-off design distance is $1.15(1625)=1868.75$ m. Subtracting the actual 1625 m distance to 10.5 m screen height leaves $243.75\approx244$ m. Diagram **C** has screen height reached before the runway end and clearway shorter than 244 m.
