GATE 2019 ME (ME1) – Question 48

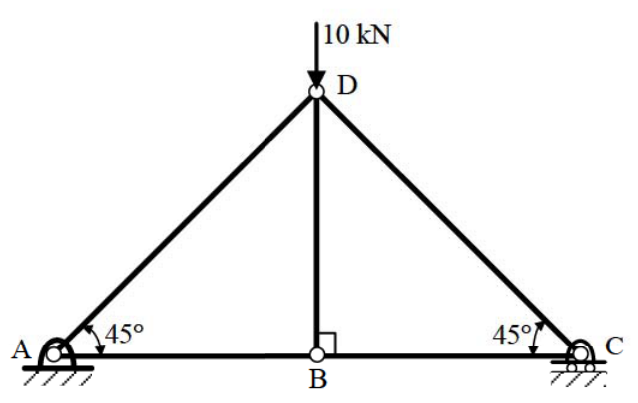

The shown truss comprises AB, BC, CD, AD and BD and carries 10 kN vertically downward at D. Find BC axial force magnitude (kN).
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 4.98 to 5.02
Explanation
Symmetry gives 5 kN vertical support reactions. At C, the vertical component of CD is 5 kN; its 45° inclination makes its horizontal component also 5 kN. Horizontal equilibrium gives **5.00 kN tension in BC**. BD is a zero-force member at the unloaded central joint.
