GATE 2024 IN – Question 37

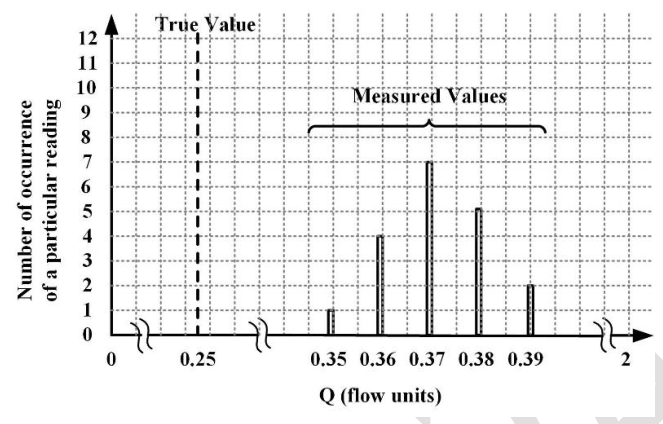

The measured values from a flow instrument, whose range is between 0 and 2 flow units, are shown in the histogram. The systematic error (bias) and the maximum error (in flow units), respectively are
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: (A) 0.12 and 0.14
Explanation
The readings cluster around 0.37 flow units while the true value is 0.25, so bias is approximately 0.12.
The largest reading is 0.39, giving maximum absolute error 0.39−0.25=0.14.
Therefore **A**.
Frequency weighting gives nearly the same rounded central value.
