GATE 2026 EC – Question 53

Analog Circuits · Op-amp Circuits · 2 marks · Multiple choice

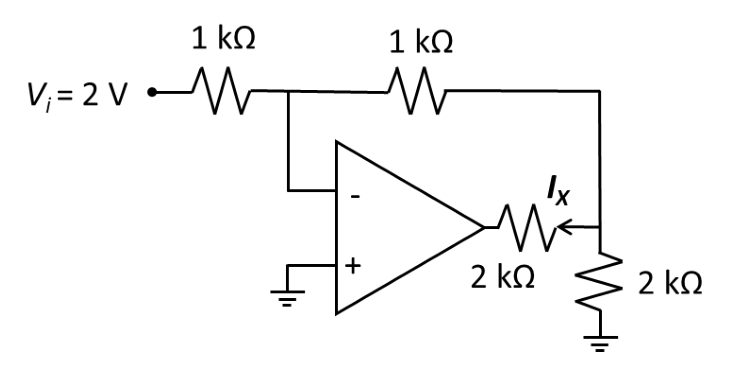

A circuit using an ideal OP-AMP is shown in the Figure. Which of the following options gives the correct value of the current $I_X$?

Diagram for GATE 2026 EC question 53
  1. 2.0 mA
  2. 1.5 mA
  3. 3.0 mA
  4. 0 mA

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) 3.0 mA

Explanation

The inverting input is a virtual ground (0 V), so the current through the two $1\ \text{k}\Omega$ resistors in series is $\dfrac{2\text{ V}}{1\text{ k}\Omega}=2$ mA, flowing towards node M.

The voltage at M is $V_M=0-2\text{ mA}\times1\text{ k}\Omega=-2$ V. The $2\ \text{k}\Omega$ resistor to ground then carries $\dfrac{-2}{2}=-1$ mA, i.e. 1 mA flows from ground into M.

KCL at M: 2 mA (from the left) + 1 mA (from ground) must leave through the output-side $2\ \text{k}\Omega$, so $I_X=3$ mA.
