GATE 2026 EC – Question 62

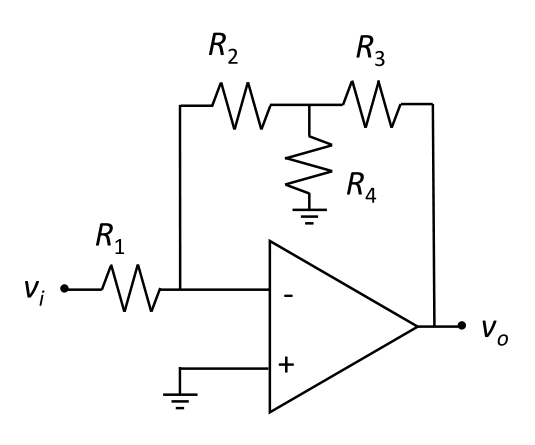

Consider an ideal OP-AMP circuit as shown in the Figure. The resistances $R_1=R_2=R_3=R_4=50$ kΩ. The magnitude of the closed loop gain is ________. (rounded off to two decimal places)

Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 2.98 to 3.02
Explanation
The inverting input is a virtual ground, so the input current is $\dfrac{v_i}{R_1}$, and it flows through $R_2$ and into the T-network. The voltage at the T node is $-i\,R_2$.
That voltage is divided: the current through $R_4$ is $\dfrac{-iR_2}{R_4}$ and the current through $R_3$ is $i+\dfrac{iR_2}{R_4}$. So
$v_o=-iR_2-i\left(1+\dfrac{R_2}{R_4}\right)R_3$, giving $\dfrac{v_o}{v_i}=-\dfrac{R_2+R_3+R_2R_3/R_4}{R_1}$.
With all resistors equal: $-\dfrac{R+R+R}{R}=-3$, so the magnitude is 3.
