GATE 2018 ME (ME2) – Question 43

Mechanics of Materials · Stress, strain and elastic constants · 2 marks · Multiple choice

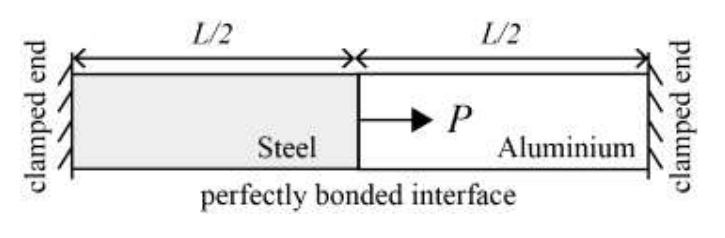

A bimetallic cylindrical bar of cross-sectional area 1 m² bonds steel (E = 210 GPa) and aluminium (E = 70 GPa) as shown, with both outer ends clamped. Find the interface force P (kN) in the indicated direction to maintain tensile strain $10^{-6}$ in steel and compressive strain of the same magnitude in aluminium.

Diagram for GATE 2018 ME (ME2) question 43
  1. 70
  2. 140
  3. 210
  4. 280

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (D) 280

Explanation

Steel tension is $E_sA\varepsilon=210\times10^9(1)(10^{-6})=210$ kN. Aluminium compression is $70\times10^9(1)(10^{-6})=70$ kN. Both resist the interface’s displacement, so required force is their sum: **280 kN, D**.
