GATE 2025 EC – Question 49

Electromagnetics · Maxwell's Equations · 2 marks · Multiple choice

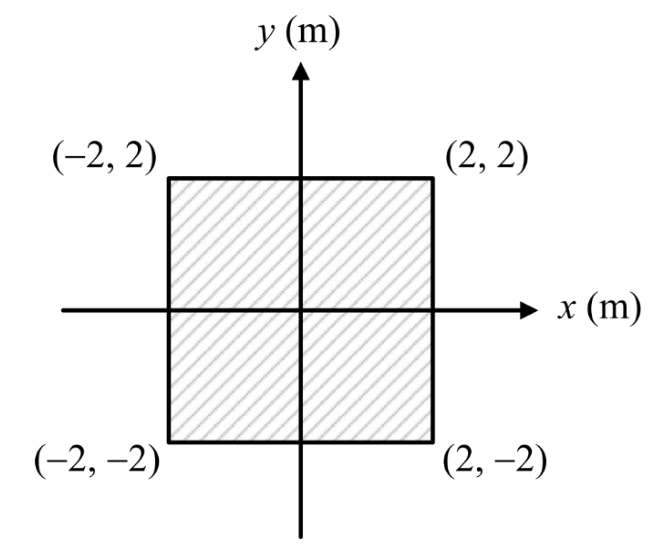

A square metal sheet of 4 m × 4 m is placed on the $x$-$y$ plane as shown in the figure below.

If the surface charge density (in μC/m$^2$) on the sheet is $\rho_s(x,y)=4|y|$, then the total charge (in μC, rounded off to the nearest integer) on the sheet is ________.

Diagram for GATE 2025 EC question 49
  1. 16
  2. 85
  3. 64
  4. 256

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) 64

Explanation

The charge density depends only on $y$, so $Q=\int_{-2}^{2}\int_{-2}^{2}4|y|\,dy\,dx$.

$Q=4\times4\times4=64\ \mu$C.
