Capacitor voltage in the shown circuit is v c(t)=A 1( 1t- 1)+A 2( 2t- 2). Find A₁,A₂ respectively.

GATE 2014 EE (EE2) – Question 40

Electric Circuits · Network Theorems: Thevenin, Norton, Superposition and Maximum Power Transfer theorem · 2 marks · Multiple choice

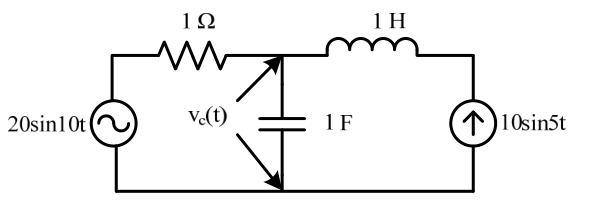

Capacitor voltage in the shown circuit is $v_c(t)=A_1\sin(\omega_1t-\theta_1)+A_2\sin(\omega_2t-\theta_2)$. Find A₁,A₂ respectively.

Diagram for GATE 2014 EE (EE2) question 40

2.0 and 1.98
2.0 and 4.20
2.5 and 3.50
5.0 and 6.40

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) 2.0 and 1.98

Explanation

At10rad/s,open the current source;its series inductor branch then carries no current. The1Ω–1Fdivider gives A1=20/√(1+10²)=1.990≈2.0. At5rad/s,short the voltage source. The ideal current source injects10Ainto the parallel1Ωand1Fcombination,regardless of the series inductor voltage. Thus A2=10/|1+j5|=1.961≈1.98. The nearest listed pair is **A**.
