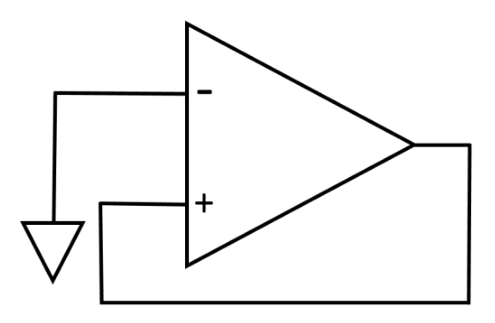

For the shown ideal-op-amp circuit, which properties are true? The inverting terminal is grounded and the output is fed directly to the non-inverting terminal.
Correct answer: (B) It is bistable; (D) Its output voltage is at saturation
Explanation
Feedback goes to the non-inverting input and is positive. A small positive output reinforces itself toward positive saturation, and a small negative output toward negative saturation. There are two stable saturated states, so B and D. A voltage follower needs negative feedback; there is no timing network to produce astable oscillation.
