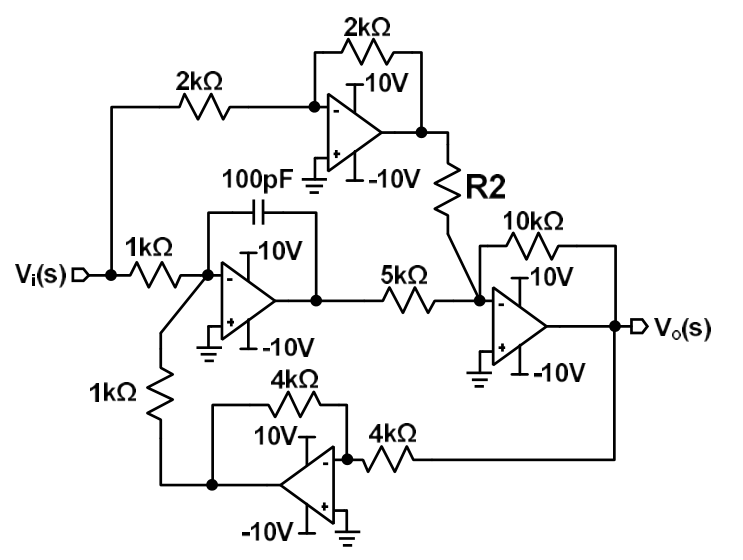

The upper unity inverter gives −Vᵢ; the bottom unity inverter gives −Vₒ. With τ=(1 kΩ)(100 pF), the integrator output is U=−(Vᵢ−Vₒ)/(sτ). The final summer gives Vₒ=(10 kΩ/R₂)Vᵢ−2U. Therefore H=[a sτ+2]/[sτ+2], a=10 kΩ/R₂. Its magnitude is constant when a=1, giving R₂=10 kΩ, B. In the printed ideal topology this reduces to the constant unity all-pass response.
