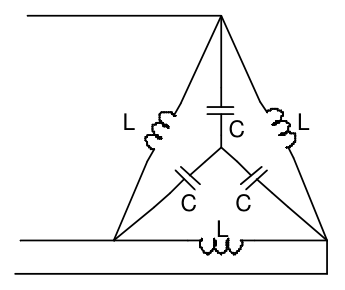

Convert the balanced delta inductors to a star equivalent. Each star inductance is L/3, so per-phase inductive admittance is 1/[jω(L/3)].
For the parallel star capacitor to cancel it, ωC=3/(ωL), hence C=3/(ω²L). At 50 Hz and L=0.01 H this is 0.00303964 F.
Thus **C=3.03964 mF**, within 2.9–3.1 mF.
