GATE 2020 EC – Question 56

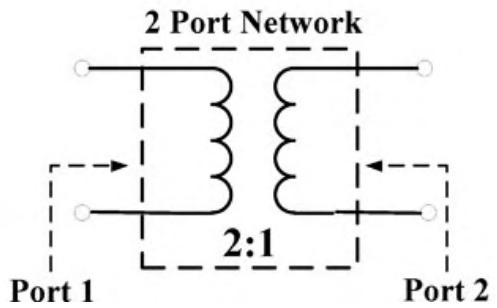

For a 2-port network consisting of an ideal lossless transformer, the parameter $S_{21}$ (rounded off to two decimal places) for a reference impedance of $10\ \Omega$, is ________.

Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 0.79 to 0.81
Explanation
For an ideal transformer with turns ratio $n$ and the same reference impedance $Z_0$ at both ports, $S_{21}=\dfrac{2n}{n^2+1}$.
With $n=2$: $S_{21}=\dfrac{4}{5}=0.8$.
