GATE 2019 EC – Question 14

Networks, Signals and Systems · Two-Port Networks and Wye-Delta Transformation · 1 mark · Multiple choice

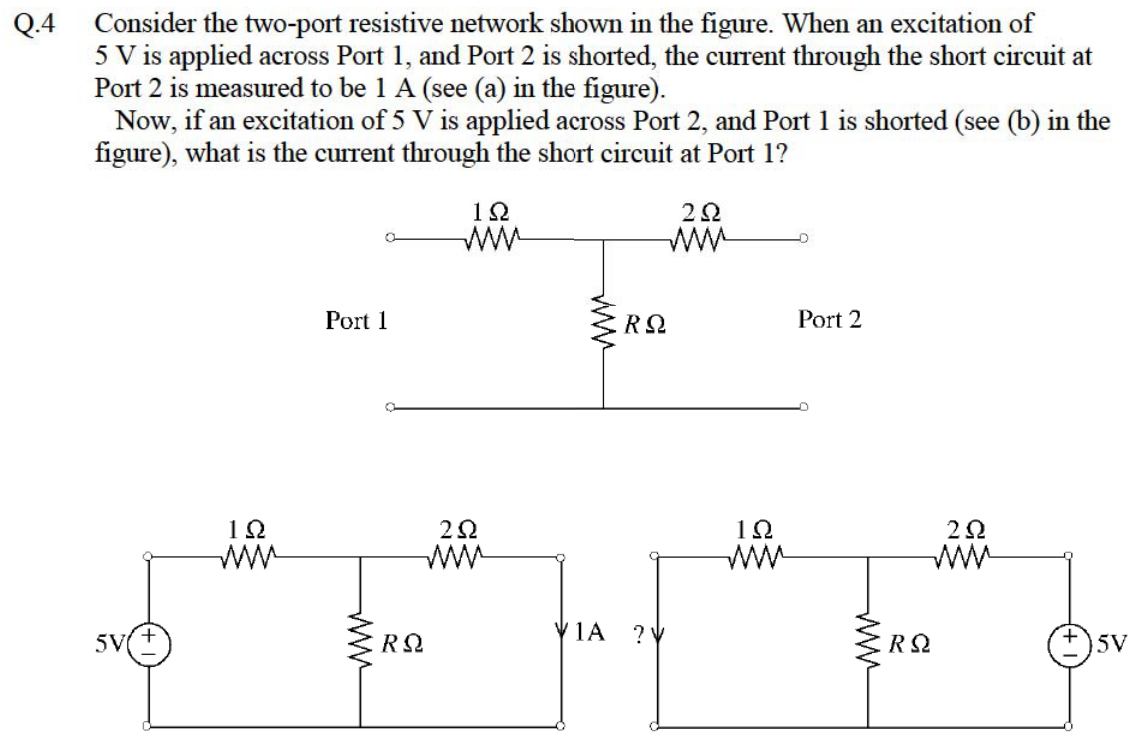

Consider the two-port resistive network shown in the figure. When an excitation of 5 V is applied across Port 1, and Port 2 is shorted, the current through the short circuit at Port 2 is measured to be 1 A (see (a) in the figure).

Now, if an excitation of 5 V is applied across Port 2, and Port 1 is shorted (see (b) in the figure), what is the current through the short circuit at Port 1?

Diagram for GATE 2019 EC question 14
  1. 0.5 A
  2. 1 A
  3. 2 A
  4. 2.5 A

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (B) 1 A

Explanation

A network built only from resistors is reciprocal. For a reciprocal two-port, the transfer from port 1 to port 2 equals the transfer from port 2 to port 1:

$\dfrac{I_2}{V_1}\Big|_{V_2=0}=\dfrac{I_1}{V_2}\Big|_{V_1=0}$.

In (a) 5 V at port 1 gives 1 A in the short at port 2, so the ratio is $\tfrac15$ S. Applying the same 5 V at port 2 gives $I_1=5\times\tfrac15=1$ A at port 1.
