GATE 2018 EC – Question 35
The ABCD matrix for a two-port network is defined by:
$$\begin{bmatrix}V_1\\I_1\end{bmatrix}=\begin{bmatrix}A&B\\C&D\end{bmatrix}\begin{bmatrix}V_2\\-I_2\end{bmatrix}$$

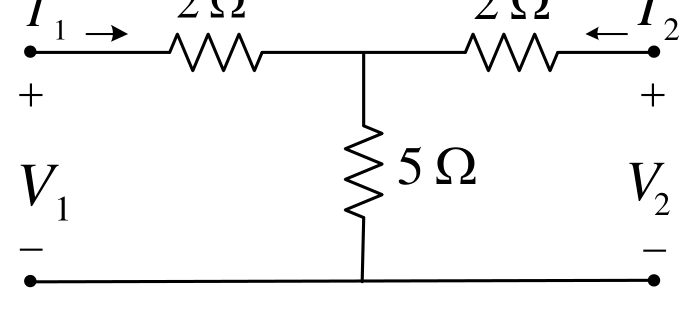

The parameter $B$ for the given two-port network (in ohms, correct to two decimal places) is ________.

Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 4.78 to 4.82
Explanation
$B=\frac{V_1}{-I_2}\Big|_{V_2=0}$. For this T-network with series arms $Z_1=Z_2=2\ \Omega$ and shunt arm $Z_3=5\ \Omega$, $B=Z_1+Z_2+\frac{Z_1Z_2}{Z_3}=2+2+\frac45=4.8\ \Omega$.
