GATE 2018 EC – Question 36

Analog Circuits · Diode Circuits · 2 marks · Multiple choice

The circuit shown in the figure is used to provide regulated voltage (5 V) across the $1\ \text{k}\Omega$ resistor. Assume that the Zener diode has a constant reverse breakdown voltage for a current range, starting from a minimum required Zener current, $I_{Zmin}=2$ mA to its maximum allowable current. The input voltage $V_I$ may vary by 5% from its nominal value of 6 V. The resistance of the diode in the breakdown region is negligible.

The value of $R$ and the minimum required power dissipation rating of the diode, respectively, are

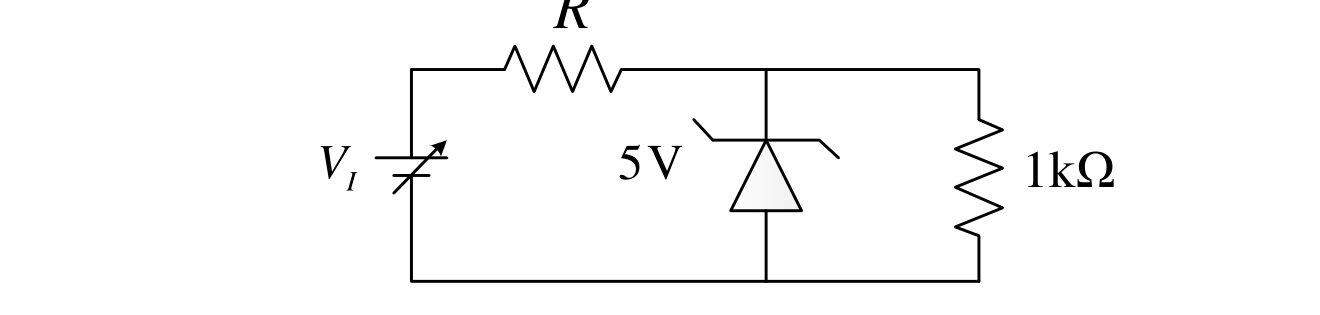

Diagram for GATE 2018 EC question 36
  1. $186\ \Omega$ and 10 mW
  2. $100\ \Omega$ and 40 mW
  3. $100\ \Omega$ and 10 mW
  4. $186\ \Omega$ and 40 mW

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (B) $100\ \Omega$ and 40 mW

Explanation
