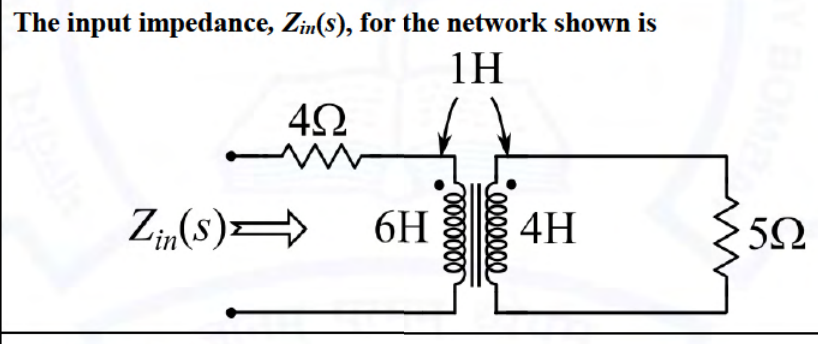

With the secondary closed by $5\ \Omega$, $Z_{in}=4+6s-\frac{(sM)^2}{4s+5}$ for $M=1$ H (the mutual term is subtracted for this winding arrangement). Then $Z_{in}=\frac{(4+6s)(4s+5)-s^2}{4s+5}=\frac{23s^2+46s+20}{4s+5}$.
More Network Elements: Ideal voltage and current sources, dependent sources, R, L, C, M elements questions
GATE 2021 EE Q60– An air-core radio-frequency transformer as shown has a primary winding and a secondary…
GATE 2018 EE Q29– In the two-port network shown, the h 11 parameter (where, h 11=V 1I 1, when V 2=0) in ohms…
GATE 2018 EE Q42– The equivalent impedance Z eq for the infinite ladder circuit shown in the figure is Each…
GATE 2014 EE (EE1) Q16– The three elements shown form part of a circuit. Find total power absorbed (W).
GATE 2014 EE (EE1) Q39– A lamp is rated 40 W, 240 V. Its resistance at 26°C is 120 Ω and temperature coefficient…
GATE 2017 EE (EE2) Q32– The 1 F capacitor in the circuit is initially uncharged. The energy transferred from the…
