Correct answer: (B) It can be used for dividing the input frequency by 5.
Explanation

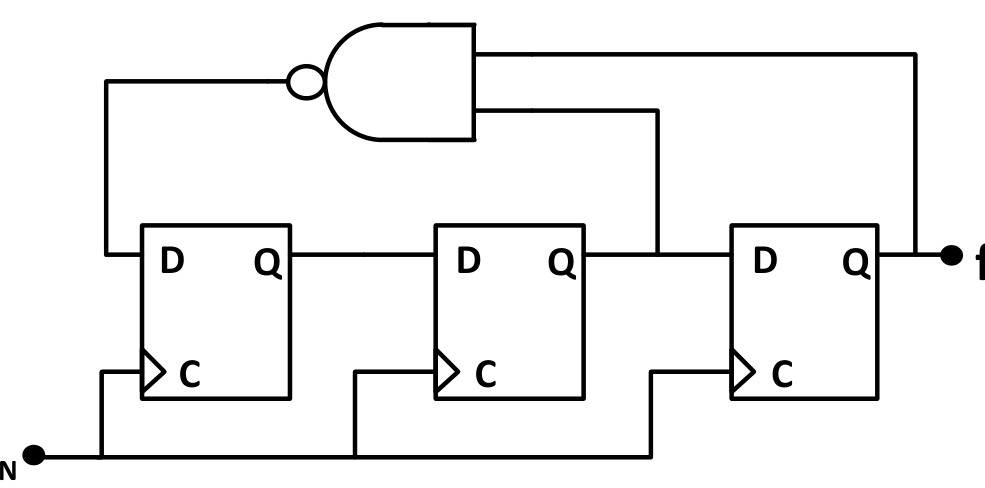

The three D flip-flops form a shift register whose serial input is taken from the NAND of two of the outputs. Following the state sequence from the initial state around the feedback loop gives a cycle of length 5, so the output frequency is the input frequency divided by 5 (the official key).
