GATE 2019 CE (CE1) – Question 46

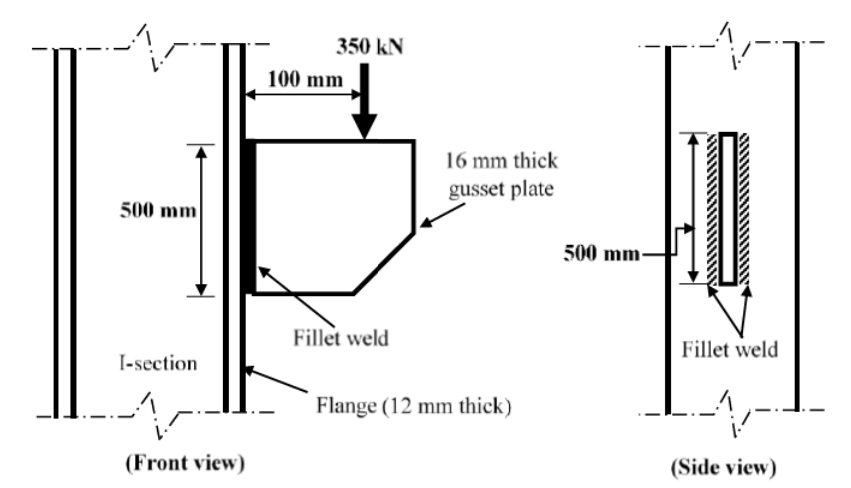

A 16 mm gusset plate is connected to a 12 mm I-section flange by 10 mm fillet welds on both sides as shown. Each weld is 500 mm long. A 350 kN point load acts 100 mm from the flange. Find maximum resultant stress on the fillet weld along the vertical plane (MPa), to one decimal place.
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 78 to 78.2 OR 105.3 to 105.5
Explanation
Effective throat is $0.7(10)=7$ mm. Two 500 mm welds give throat area 7000 mm² and direct shear $\tau=350000/7000=50$ MPa. Weld-group section modulus is $2(7)(500^2)/6=583333.3$ mm³. Moment is $350000(100)=35\times10^6$ N·mm, giving normal stress σ = 60 MPa. Vector resultant is $\sqrt{60^2+50^2}=$ **78.1 MPa**. The official key also accepts **105.4 MPa**, the von Mises equivalent $\sqrt{60^2+3(50)^2}$. Both official grading alternatives are preserved.
