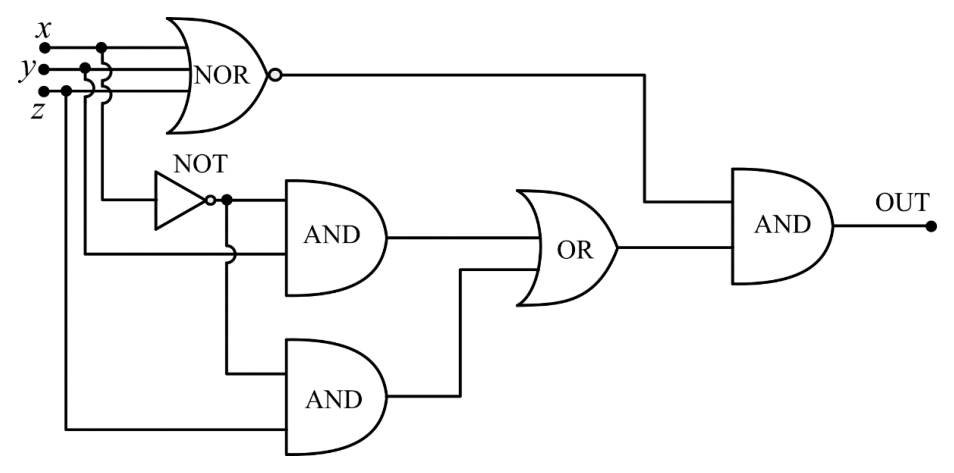

The NOR gate gives $\bar x\bar y\bar z$. The two AND gates give $\bar xy$ and $\bar xz$, and the OR combines them into $\bar x(y+z)$. The final AND is $\bar x\bar y\bar z\cdot\bar x(y+z)=\bar x\,(\bar y\bar z)(y+z)=0$, since $\bar y\bar z=\overline{y+z}$ and $(y+z)\overline{(y+z)}=0$. The output is always 0.
