GATE 2015 EE (EE2) – Question 47
Analog and Digital Electronics · VCOs and timers, combinatorial and sequential logic circuits, multiplexers, demultiplexers · 2 marks · Multiple choice

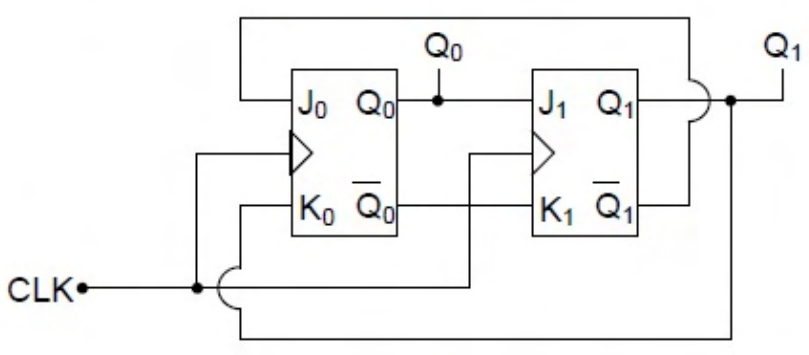

The sequential circuit starts at Q1Q0=00. Its state immediately after the 333rd clock pulse is
- 00
- 01
- 10
- 11
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: (B) 01
Explanation
From the wiring, the first JK pair has J0=Q̄1,K0=Q1, making Q0,next=Q̄1. The second has J1=Q0,K1=Q̄0, making Q1,next=Q0.
The state cycle is therefore 00→01→11→10→00. Its period is four. Since 333 mod 4=1, the state is the first after 00: **01, B**.
