GATE 2020 EC – Question 26
Networks, Signals and Systems · Sinusoidal Steady State Analysis · 1 mark · Numerical answer

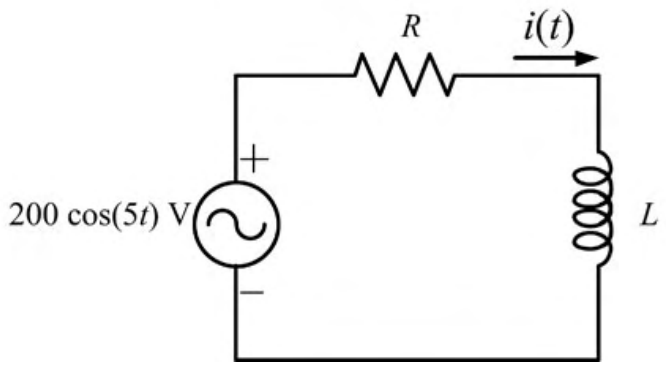

The current in the RL-circuit shown below is $i(t)=10\cos(5t-\pi/4)$ A. The value of the inductor (rounded off to two decimal places) is ________ H.

Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 2.80 to 2.85
Explanation
The source is $200\cos5t$ V (as given in the circuit) and the current is $10\cos(5t-45^\circ)$ A, so the impedance is
$Z=\dfrac{200\angle0^\circ}{10\angle-45^\circ}=20\angle45^\circ=14.14+j14.14\ \Omega$.
The imaginary part is $\omega L=14.14$, so $L=\dfrac{14.14}{5}=2.83$ H.
