GATE 2020 EC – Question 25

Networks, Signals and Systems · Two-Port Networks and Wye-Delta Transformation · 1 mark · Numerical answer

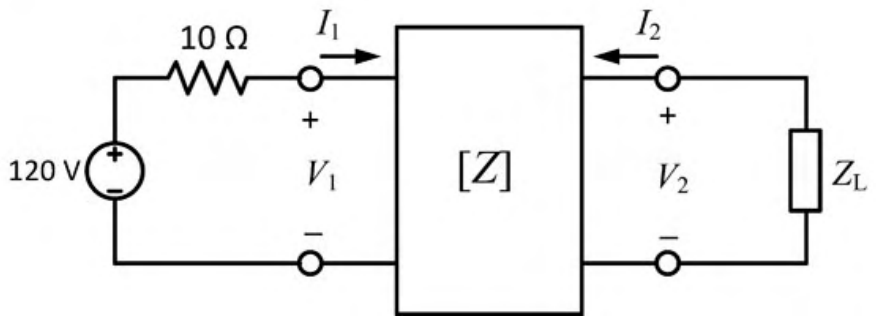

In the given circuit, the two-port network has the impedance matrix $[Z]=\begin{bmatrix}40&60\\60&120\end{bmatrix}\Omega$. The value of $Z_L$ for which maximum power is transferred to the load is ________ $\Omega$.

Diagram for GATE 2020 EC question 25

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 48

Explanation

Maximum power transfer needs $Z_L$ equal to the Thevenin impedance seen from port 2, with the source replaced by its internal resistance ($10\ \Omega$).

With port 1 fed through the $10\ \Omega$ source resistance, use $V_1=Z_{11}I_1+Z_{12}I_2$ and $V_2=Z_{21}I_1+Z_{22}I_2$ with $V_1=-10I_1$ (source off).

$I_1=-\dfrac{Z_{12}}{Z_{11}+10}I_2$, so $Z_{th}=Z_{22}-\dfrac{Z_{12}Z_{21}}{Z_{11}+10}=120-\dfrac{60\times60}{40+10}=120-72=48\ \Omega$.
