Correct answer: (A) the sequence 01010 is detected.
Explanation

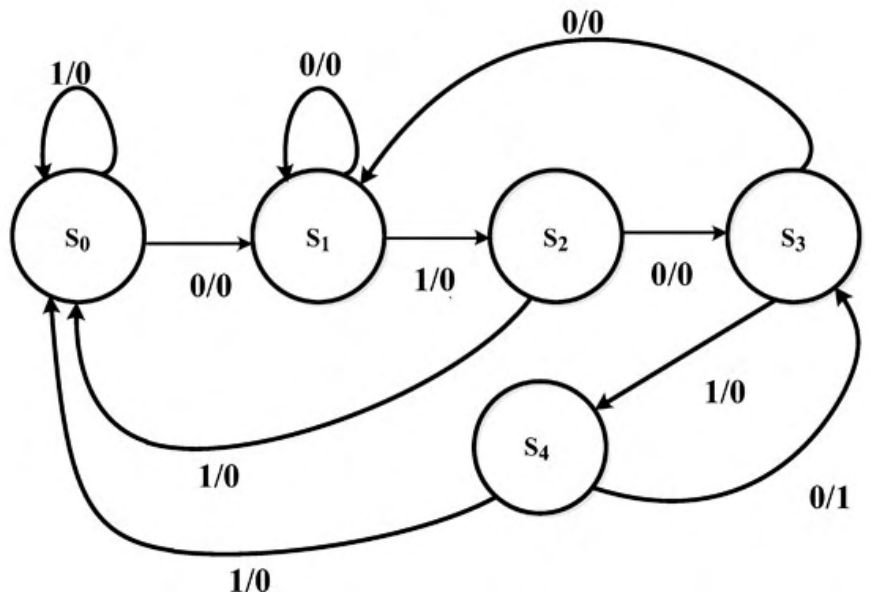

The only transition with output 1 is $S_4\to S_3$ on input 0. Reaching $S_4$ from $S_0$ requires $S_0\xrightarrow{0}S_1\xrightarrow{1}S_2\xrightarrow{0}S_3\xrightarrow{1}S_4$, and then the final 0 gives output 1. So the detected sequence is 0, 1, 0, 1, 0.
