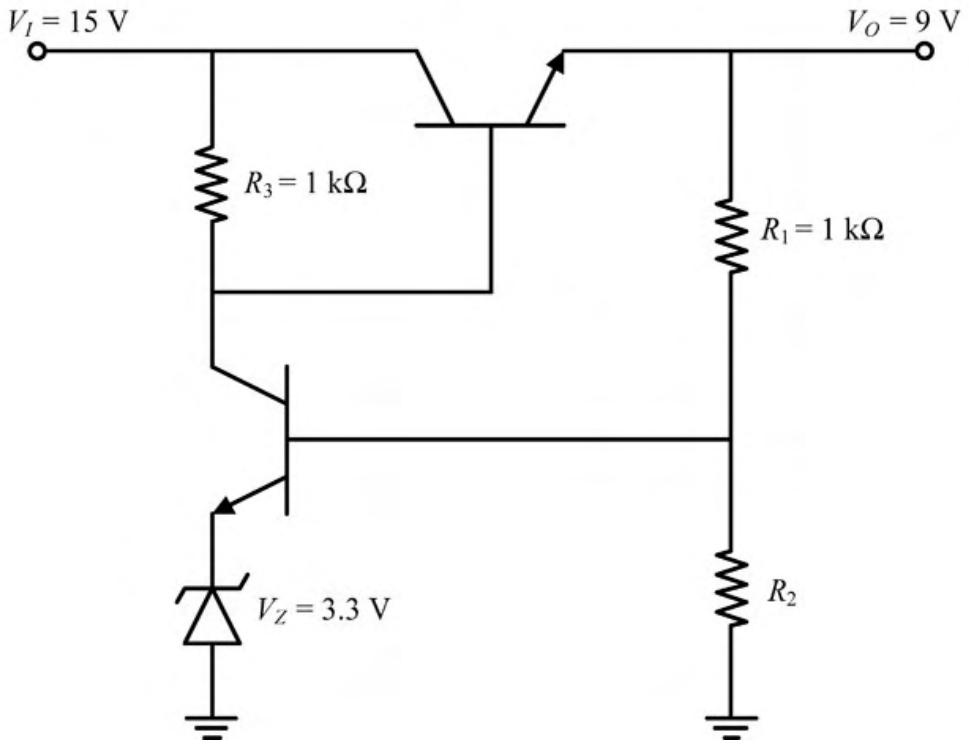

In the voltage regulator shown below, $V_I$ is the unregulated input at 15 V. Assume $V_{BE}=0.7$ V and the base current is negligible for both the BJTs. If the regulated output $V_O$ is 9 V, the value of $R_2$ is ________ $\Omega$.
Practise this question in The GATE Grind →
Show answer and explanation Correct answer: 800
Explanation The Zener sets a fixed reference. From the circuit, the base of the control transistor sits at $V_Z+V_{BE}=3.3+0.7=4.0$ V.
This base voltage is taken from the $R_1$-$R_2$ divider across the output $V_O=9$ V:
$9\times\dfrac{R_2}{R_1+R_2}=4$. With $R_1=1\ \text{k}\Omega$: $9R_2=4000+4R_2$, so $R_2=\dfrac{4000}{5}=800\ \Omega$.
