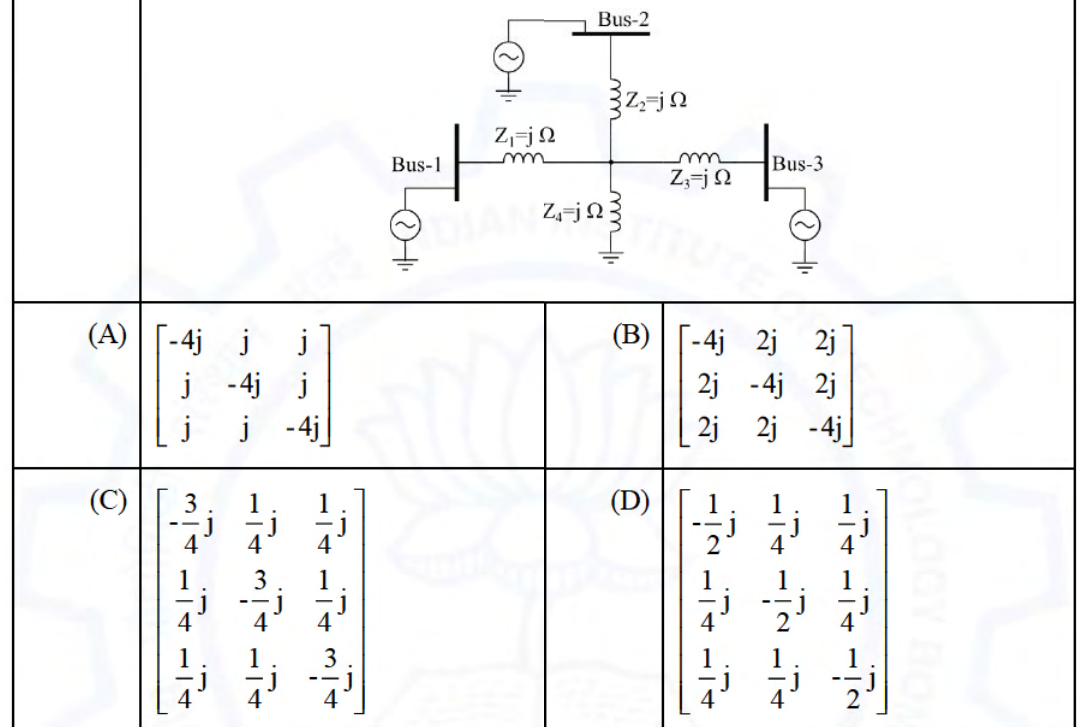

A 3-Bus network is shown. Consider generators as ideal voltage sources. If rows 1, 2 and 3 of the $Y_{Bus}$ matrix correspond to Bus 1, 2 and 3, respectively, then $Y_{Bus}$ of the network is
Ideal voltage sources at each bus behave as short circuits to ground in the Y-bus, so each bus sees the line admittances and its own connection to the reference. Building the matrix from the elements of the figure gives diagonal entries of $-\frac34j$ and off-diagonal entries of $\frac14j$ in every row, which is matrix (C).
