Home › Previous year questions › GATE 2019 EC › Question 48GATE 2019 EC – Question 48 Analog Circuits · Diode Circuits · 2 marks · Multiple choice

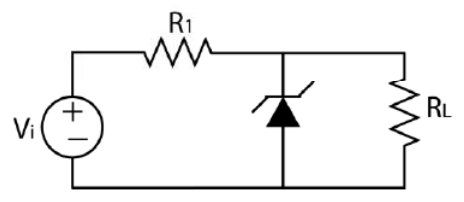

In the circuit shown, the breakdown voltage and the maximum current of the Zener diode are 20 V and 60 mA, respectively. The values of $R_1$ and $R_L$ are $200\ \Omega$ and $1\ \text{k}\Omega$, respectively. What is the range of $V_i$ that will maintain the Zener diode in the 'on' state?
22 V to 34 V 24 V to 36 V 18 V to 24 V 20 V to 28 V Practise this question in The GATE Grind →
Show answer and explanation Correct answer: (B) 24 V to 36 V
Explanation With the Zener on, the load sees $V_Z=20$ V, so the load current is fixed at $I_L=\dfrac{20}{1\text{ k}\Omega}=20$ mA.
The Zener current can range from 0 (just on) to its 60 mA maximum, so the current in the series resistor is $I=I_L+I_Z$, from 20 mA to 80 mA.
$V_i=V_Z+I R_1=20+0.2\,\text{k}\Omega\times I$: from $20+4=24$ V to $20+16=36$ V.
