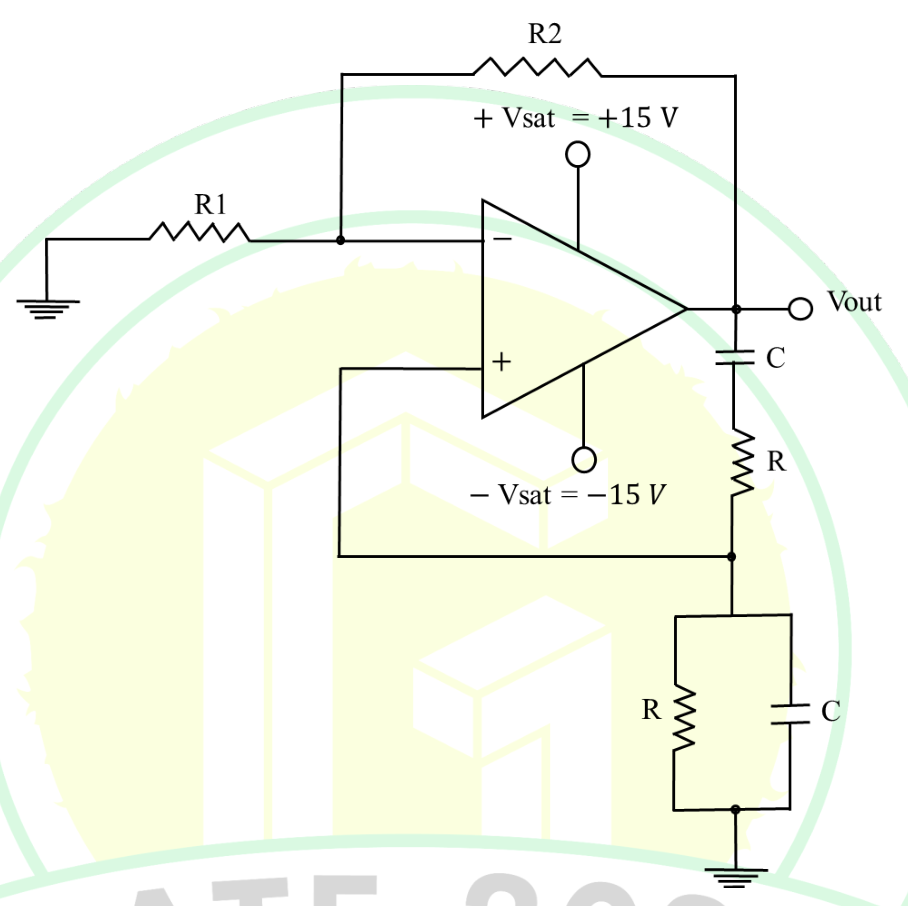

This is a Wien-bridge oscillator with equal frequency-selective R,C elements. The zero-phase frequency is f0=1/(2πRC). Here RC=1000×10⁻⁷=10⁻⁴ s, giving f0≈1591.55 Hz=1.59 kHz. The amplifier resistor ratio controls loop gain; the frequency is set by the equal RC network.
