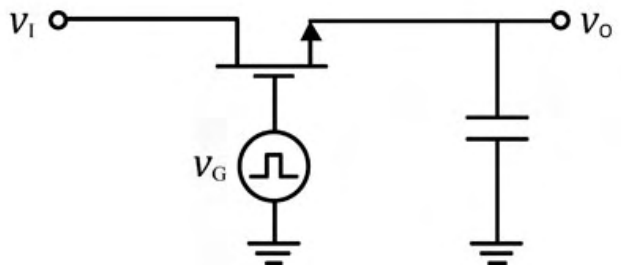

An enhancement MOSFET of threshold voltage 3 V is being used in the sample and hold circuit given below. Assume that the substrate of the MOS device is connected to $-10$ V. If the input voltage $V_I$ lies between $\pm10$ V, the minimum and the maximum values of $V_G$ required for proper sampling and holding respectively, are
The NMOS switch must turn on for every input in $\pm10$ V when $V_G$ is high, and must be off for every input when $V_G$ is low. To be on at $V_I=+10$ V the gate must be at least $10+3=13$ V. To be off at $V_I=-10$ V (the most negative input, so the largest $V_{GS}$ for a given $V_G$) the gate must be at most $-10+3=-7$ V. So the gate swings between $13$ V and $-7$ V.
