GATE 2019 EC – Question 34

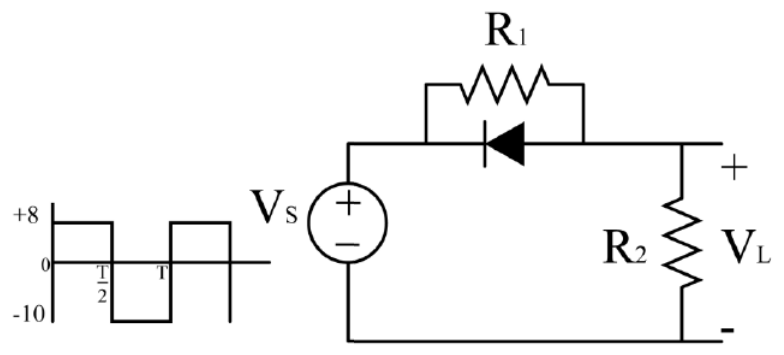

In the circuit shown, $V_s$ is a square wave of period $T$ with maximum and minimum values of 8 V and -10 V, respectively. $R_1=R_2=50\ \Omega$. The average value of $V_L$ is ________ volts (rounded off to 1 decimal place).

Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: -3
Explanation
In the figure the diode points from the load node back towards the source, so it conducts when $V_s$ is negative and blocks when $V_s$ is positive.
- $V_s=+8$ V: the diode is off, so the current flows through $R_1$ and $R_2$ in series and $V_L=8\times\dfrac{50}{50+50}=4$ V.
- $V_s=-10$ V: the diode is on and short-circuits $R_1$, so the whole source voltage appears across $R_2$ and $V_L=-10$ V.
Each level lasts half a period, so the average value is $\dfrac{4+(-10)}{2}=-3.0$ V.
