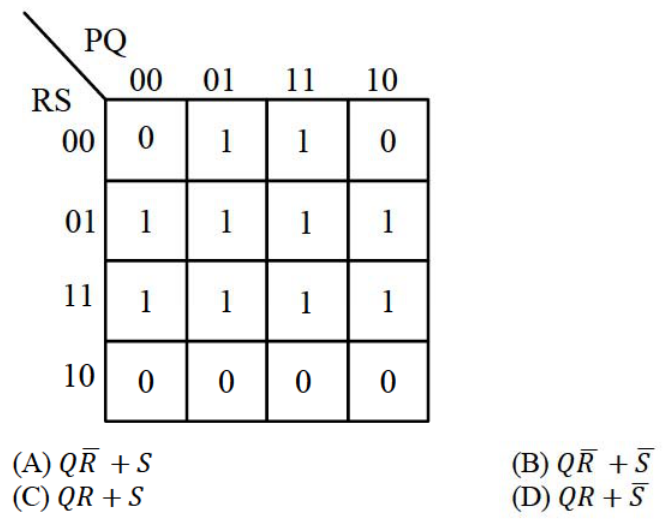

The rows $RS=01$ and $RS=11$ are all ones, which gives the term $S$. In the row $RS=00$ the ones are in the columns $PQ=01$ and $11$, i.e. $Q=1$, and there $R=0$, which gives $Q\bar R$. The row $RS=10$ is all zeros. So $F=S+Q\bar R$.
