GATE 2018 EE – Question 24
Analog and Digital Electronics · VCOs and timers, combinatorial and sequential logic circuits, multiplexers, demultiplexers · 1 mark · Multiple choice

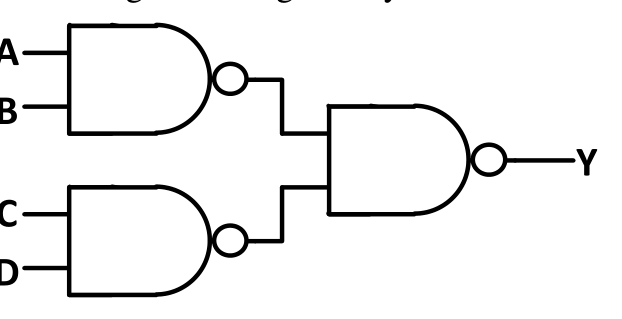

In the logic circuit shown in the figure, Y is given by

- $Y=ABCD$
- $Y=(A+B)(C+D)$
- $Y=A+B+C+D$
- $Y=AB+CD$
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: (D) $Y=AB+CD$
Explanation
The first-level NAND gates give $\overline{AB}$ and $\overline{CD}$, and the output NAND gives $Y=\overline{\overline{AB}\cdot\overline{CD}}=AB+CD$.
