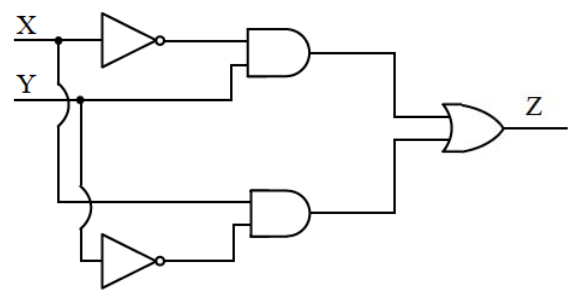

The two AND gates compute $X\cdot\bar Y$ and $\bar X\cdot Y$ (each has one inverted input), and the OR gate combines them: $Z=X\bar Y+\bar XY$, which is the XOR function.
