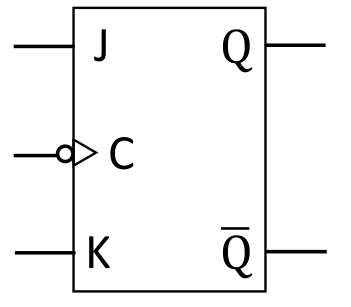

The negative edge triggered JK flip-flop in the Figure has J and K inputs tied to Logic High and a square wave of 10 cycles/second is applied to its clock (C) input. The frequency of the output Q (in cycles/second) is ________. (rounded off to two decimal places)
With $J=K=1$ a JK flip-flop toggles on every active clock edge. This is a negative-edge flip-flop, so it toggles on every falling edge, once per clock cycle.
Q needs two toggles for one full cycle, so its frequency is $\dfrac{10}2=5$ cycles/s.
