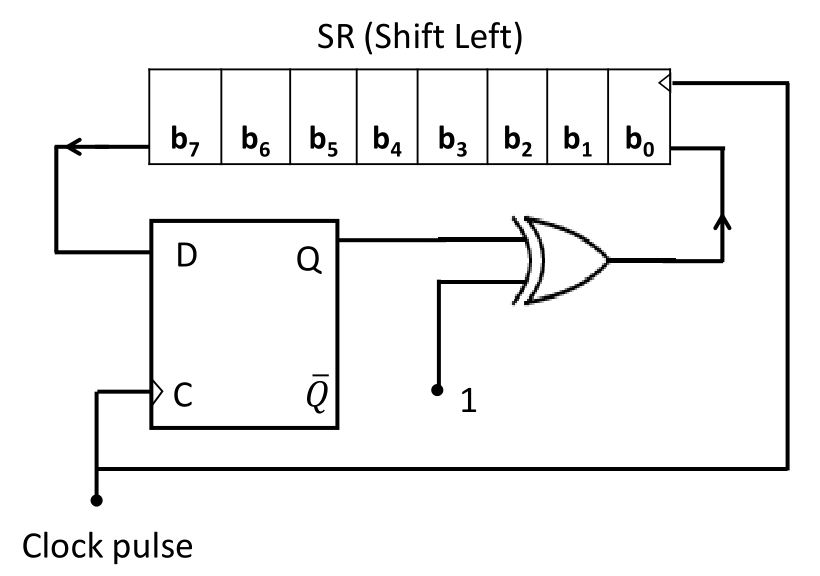

A shift-left Shift Register (SR) and a D flip-flop are connected to a synchronized clock as shown in the Figure. Assume that the SR and D flip-flops are initially cleared and the XOR gate has no propagation delay. Which of the following options gives the correct binary representation ($b_7b_6b_5b_4b_3b_2b_1b_0$) of the content of the shift register immediately after the 5th clock transition (positive edge)?
The bit shifted into $b_0$ is $Q\oplus1=\bar Q$, and the D flip-flop samples $b_7$, which is 0 until a 1 reaches it after at least 7 shifts. So $Q=0$ and a 1 is shifted in at every clock for the first five clocks.
After 5 clocks, five 1s have entered from the right: $00011111$.
