Correct answer: (B) a square wave of frequency 50 MHz
Explanation

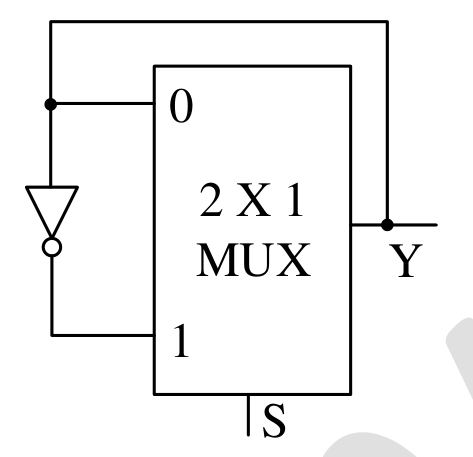

With $S=1$ the MUX passes input 1, which is $\bar Y$ (the inverter has zero delay). So the output follows $\bar Y$ after the MUX delay of 10 ns.
Each 10 ns the output flips, so the output stays at one level for 10 ns before flipping. A full cycle (high then low) takes 20 ns, i.e. a 50 MHz square wave.
